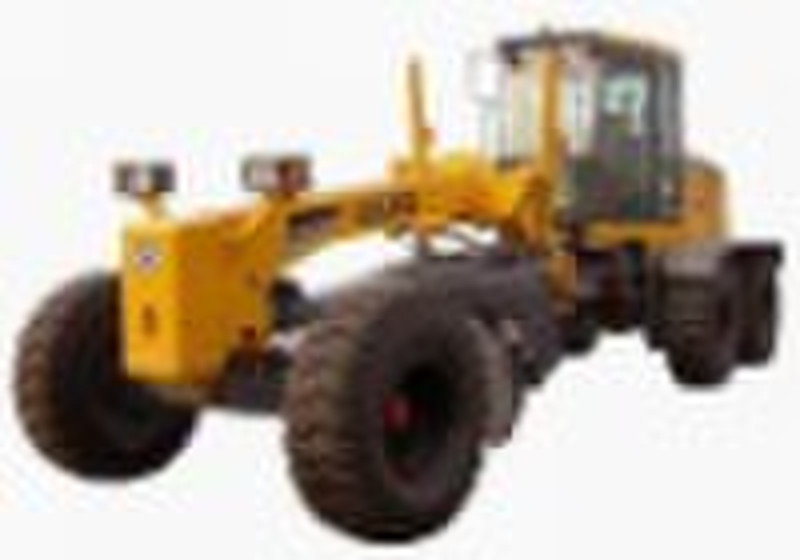

Motor Grader GR200
original price: 10 000 USD
Emily Wong
Contact person
Basic Information
Motor Grader GR200 GR200Basic specificationEngine modelD6114 ZG14BRated power/speed 147kW/2200rpmDimension(LxWxH)8932×2625×3470mmOperating weight(Standard)16000kgPerformance specificationTravelling speed ,forward5,8,11,19,23,38 km/hTravelling speed ,reverse5,11,23 km/hTractive force(f=0.75)87KNMax. gradeability30%Tire inflation pressure260 MPaWorking hydraulic pressure18 MPaTransmission pressure1.3 1.8MPaOperating specificationMax. steering angle of front wheels±50°Max. lean angle of front wheels±17°Max. oscillation angle of front axle±15°Max. oscillation angle of balance box15Frame articulation angle±27°Min. turning radius using articulation7.3mBiadeMaximum lift above ground450mmMaximum depth of cutting500mmMaximum blade position angle90°Blade cutting angle28°—70°Circle reversing rotation360°Moldboard width X height4270×610mm
Delivery terms and packaging
Packaging Detail: nude packing Delivery Detail: 20 days
Port: any port in China
Payment term
Letter of credit
Telegraphic transfer
-
Payment Methods
We accept:
